Description
Features:

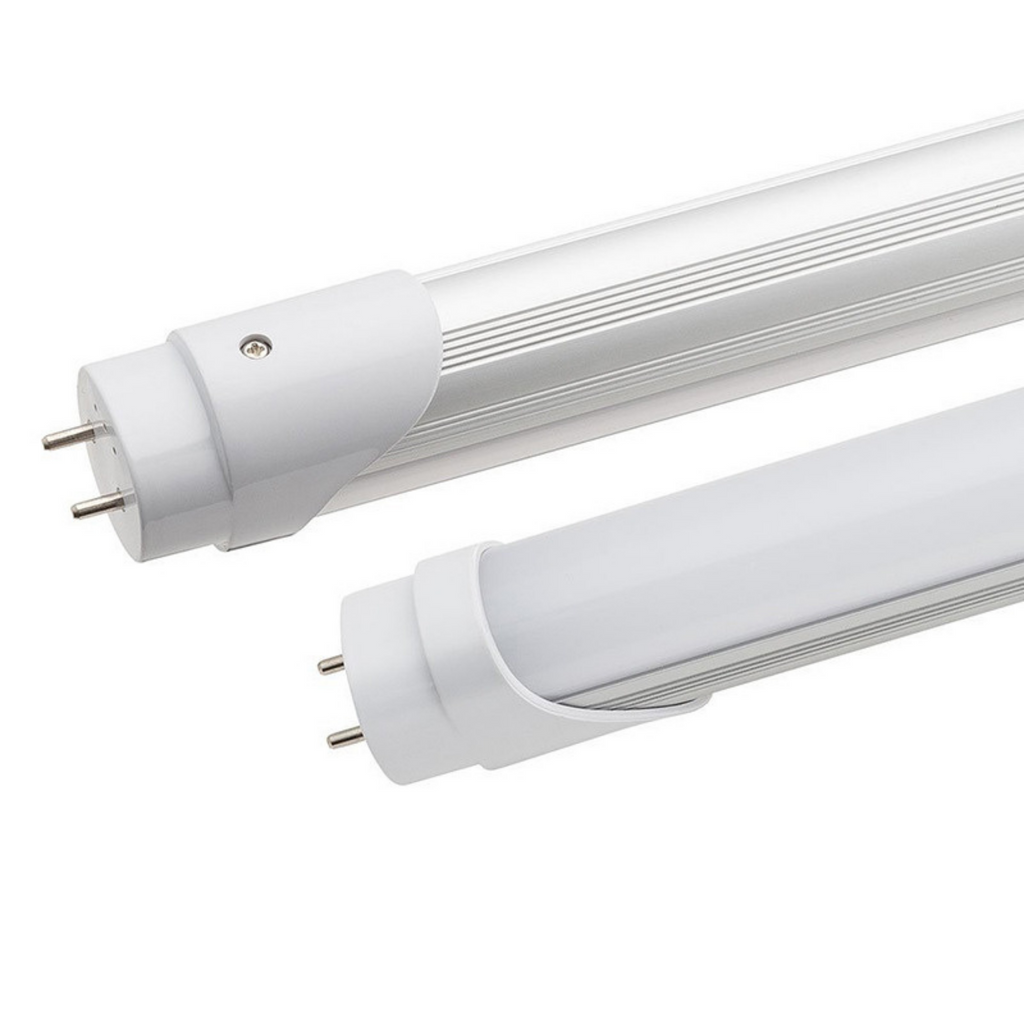

- This industry-leading LED T8 Type B replacement lamp produces 130 Lumens per watt.
- Includes an internal LED Driver for Ballast Bypass, Direct Wire, Singled-Ended or Dual-Ended Power input.
- Anti-UV Frosted Polycarbonate Lens for even light transmission and to prevent discoloration.

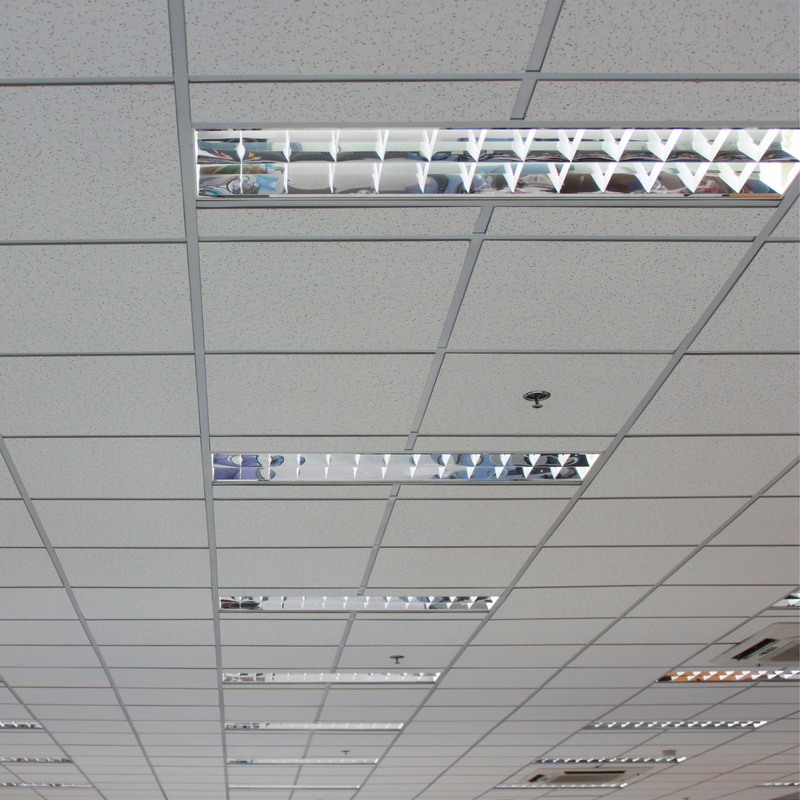

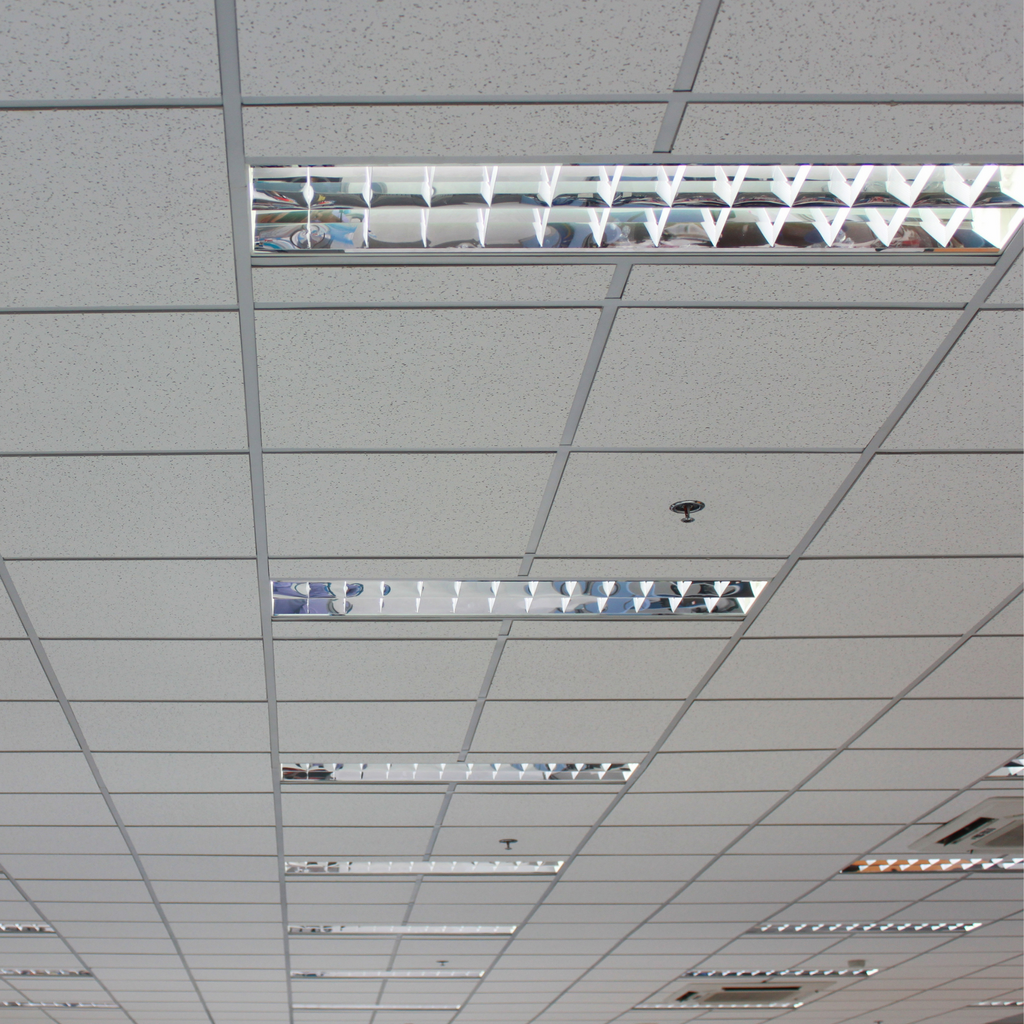

- Suitable for replacing 4Ft linear fluorescent lamps in commercial and industrial locations.
- Overpower, short and open circuit protected.
- No noise, No UV, No IR, Mercury-free, RoHS compliant.
- Fire-resisting sleeves: UL94 V0 level, high temperature resistant, thermal-insulation, inflaming retarding & anti climate aging much prolong tubes life time.
Specifications:
| Bulb Type |
LED T8 |
| Voltage | AC 100-277V |
| Wattage | 18W |
| Light Output | 2340Lm |
| Efficacy | 130Lm/W |
| Color Temperature | 4000K |
| Power Factor | >0.9 |
| CRI | >80 |
| Beam Angle | 120° |
| Driver | Type B, Ballast Bypass |
| Dimmable | No |
| Length | 4Ft |
| Base | G13 |
| Housing | Aluminum Base + PC Cover |
| Lens | Frosted |
| Application | Single/Dual Ended Power |
| Life Span | 50,000 Hours |
| Certificate | UL, cUL |
| Operating Temperature | -20~40°C |
| Package | 25pcs/ctn |
Installation:
- Turn off the power to the light fixture at the breaker panel before installation.
- Open the diffuser from the light fixture.
- Remove the fluorescent tubes. Please dispose of these items properly as they contain mercury.
- Cut the wires shown as the diagram below
- Make the new wire connect to the branch circuit shown as the diagram below
- Replace the cover over the wiring channel
- Install the LED tubes, close the diffuser.
- Turn on the power.
